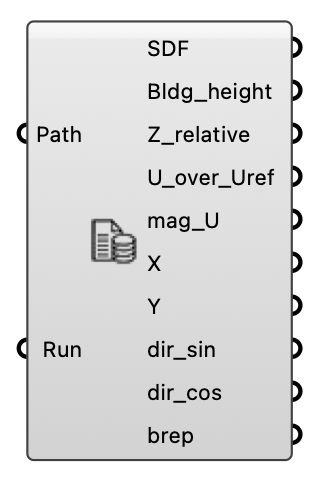

Dataset Reader - [source code]
Read processed CSV datasets back into Grasshopper. Supports mag_U and all spatial features.
Input
| Name | Nickname | Description |
|---|---|---|
| Path | Path to the .csv file to read. | |
| Run | Trigger the reading process. |
Output
| Name | Nickname | Description |
|---|---|---|
| SDF | Signed distance from building. | |
| Bldg_height | Building height. | |
| Z_relative | Relative height. | |
| U_over_Uref | Wind speed at height. | |
| mag_U | Simulated wind speed magnitude. | |
| X | X coordinate. | |
| Y | Y coordinate. | |
| dir_sin | Direction sin component. | |
| dir_cos | Direction cos component. | |
| brep | Reconstructed building geometry (boxes) from CSV data. |
