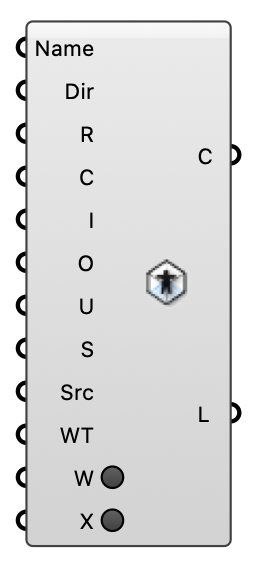

Indoor Case - [source code]
Build an isothermal indoor ventilation case (room + inlets + outlets + sinks) for OpenFOAM 12.
Input
| Name | Nickname | Description |
|---|---|---|
| Name | Case name (no spaces). | |
| Dir | Working directory (default ~/Eddy3D/Indoor). | |
| Room | R | Closed room Brep. |
| Cell Size | C | Mesh cell size (m). |
| Inlets | I | Inlet surface(s): Brep or Indoor Inlet component(s). |
| Outlets | O | Outlet surface(s): Brep or Indoor Outlet component(s). |
| Inlet Speed | U | Fallback inlet speed (m/s) when raw Breps are used. Ignored when Indoor Inlet components provide velocity. |
| Sinks | S | Momentum sinks (Indoor Sink). |
| Src | Emitters: Momentum / Heat / CO2 / Viral Source components. | |
| Wall Temp | WT | Optional wall temperature (K) for the transported temperature field (needs a Heat Source). |
| Write | W | Click to write the case to disk. Resets automatically so it never re-writes on recompute. |
| Clear | X | Click to delete the case folder. Resets automatically so it never re-deletes on recompute. |
Output
| Name | Nickname | Description |
|---|---|---|
| Case | C | The indoor case (for the Run component). |
| Logs | L | Build / write logs. |
