Live Residuals - [source code]

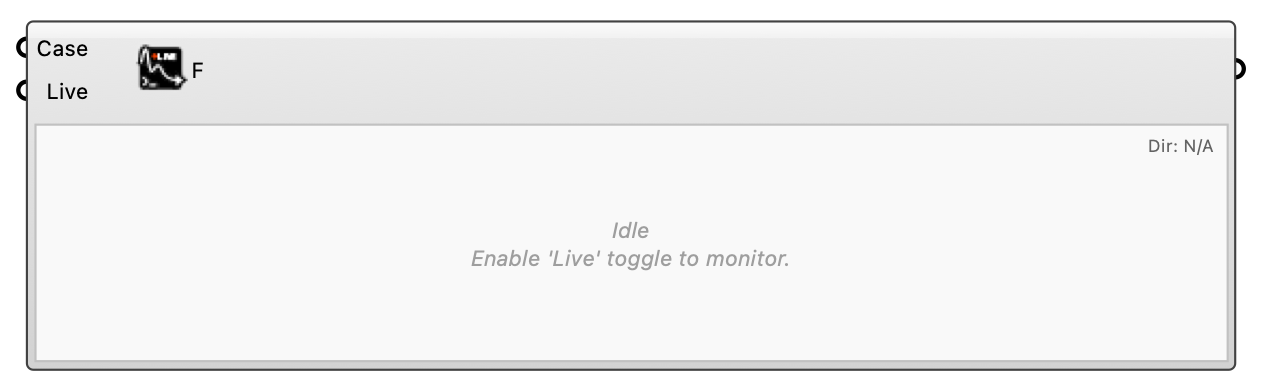

Draws a wind case's residual convergence directly on the Grasshopper canvas, with lightweight timed updates. Wire the case and toggle 'Live' to monitor a running simulation without an external plotter window. When a warm-up ramp is enabled the solver restarts mid-run and writes a separate residual file per phase; all phases are stitched into one continuous curve so you see the full history (warm-up + main), not just the latest phase.
Input
| Name | Nickname | Description |
|---|---|---|
| Case | Wind case (from the wind case component or Load Wind Case). | |
| Live | Set to true to enable timed live updates. |
Output
| Name | Nickname | Description |
|---|---|---|
| File | F | Residuals file being monitored. |
