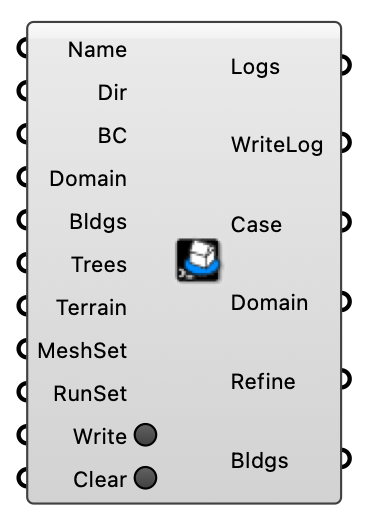

Outdoor Case - [source code]
Create, write, and manage an Eddy3D outdoor wind simulation case.
Input
| Name | Nickname | Description |
|---|---|---|
| Name | Case folder name (no spaces). Optional — if left blank, a friendly random name is generated automatically (e.g. swift-otter-fjord-lantern). | |
| Dir | Folder for case files and results (default: %USERPROFILE%/Eddy3D/Outdoor). | |
| Boundary Conditions | BC | Boundary conditions from the ABL or Uniform Flow component, carrying the wind directions (required for Write Case). |
| Domain | Domain parameters from the Box Domain or Cylinder Domain component (box with auto extents when empty). | |
| Bldgs | Closed building meshes (required for Write Case). | |
| Trees | Tree canopy meshes or Tree porous-zone objects from the Tree component (optional). | |
| Terrain | Terrain mesh (optional). | |
| MeshSet | Mesh settings from the Mesh Settings component. | |
| RunSet | Run settings from the Run Settings component. | |
| Write | Write the case files to the working directory. | |
| Clear | Delete all files for this case in the working directory. |
Output
| Name | Nickname | Description |
|---|---|---|
| Logs | Case modification logs. | |
| WriteLog | WriteCase logs formatted for component input. | |
| Case | Wind case; plug into the Wind Run and post-processing components. | |
| Domain | Resolved simulation domain (box, or domain mesh for cylindrical cases). | |
| Refine | Refinement box derived from the case. | |
| Bldgs | Building meshes from the case. |
