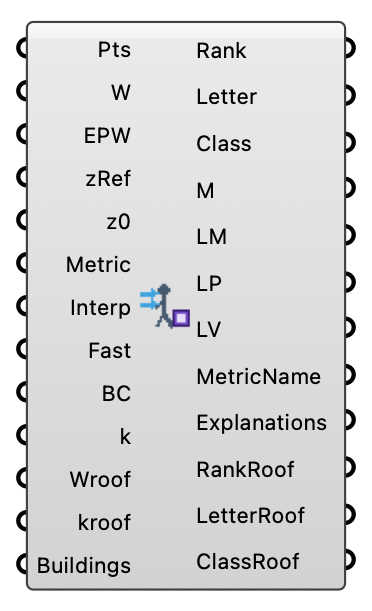

Wind Comfort Predictor (ML) - [source code]
Calculate Pedestrian Wind Comfort using predicted wind fields from the ONNX model.
Input
| Name | Nickname | Description |
|---|---|---|
| Pts | Analysis points for mesh visualization. | |
| Wind Speeds | W | Predicted wind speeds (m/s) as a DataTree from WindPredictor. |
| EPW | Path to the .epw weather file. | |
| zRef | Reference height for the simulations (m). Default = 10.0 | |
| z0 | Roughness length (m). Default = 1.0 | |
| Metric | Comfort metric to use. | |
| Interp | Interpolate between wind directions. Default = true | |
| Fast | Use Method of Moments for ultra-fast Weibull estimation. Default = true | |
| Boundary Conditions | BC | Optional simulation metadata to automate zRef, z0, and Uref (sim). |
| k | Turbulent kinetic energy (m²/s²) as a DataTree from WindPredictor. When provided, GEM (Gust Equivalent Mean) is used: GEM = U + g × √(2k/3). Peak factor g is auto-set per metric. | |
| Wroof | Optional roof-level wind speeds (m/s) DataTree. | |
| kroof | Optional roof-level TKE (m²/s²) DataTree. | |
| Buildings | Optional list of Brep or Mesh objects representing buildings. Needed to elevate roof-level comfort meshes to correct heights. |
Output
| Name | Nickname | Description |
|---|---|---|
| Rank | Wind comfort rank (integer). | |
| Letter | Wind comfort class letter (e.g., A, B, C). | |
| Class | Wind comfort class description. | |
| Comfort Mesh | M | Colored mesh representing comfort levels. |
| Legend Mesh | LM | Legend mesh for comfort categories. |
| Legend Points | LP | Label points for the legend letters. |
| Legend Letters | LV | Letters (A-S) for the legend. |
| MetricName | The name of the currently active comfort/safety standard. | |
| Explanations | Detailed descriptions for each class (e.g., A: Sitting Long). | |
| RankRoof | Wind comfort rank (integer) for roof level. | |
| LetterRoof | Wind comfort class letter for roof level. | |
| ClassRoof | Wind comfort class description for roof level. |
