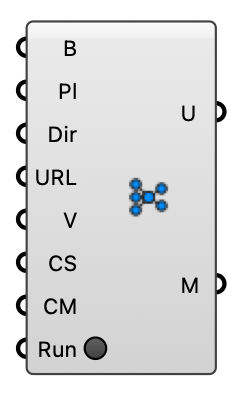

GAN Predict - [source code]
Predict a pedestrian wind-speed field from buildings using the Eddy3D GAN (no CFD run). Sends the geometry to the GAN API and returns wind speeds + a colored result mesh.
Input
| Name | Nickname | Description |
|---|---|---|
| Buildings | B | Building meshes. |
| Pl | Square analysis plane (defaults to a 512×512 box around the buildings). | |
| Dir | Wind direction in degrees (0=N, clockwise). | |
| URL | GAN API base URL. | |
| Voxel Size | V | Geometry rasterization voxel size (m). |
| Color Size | CS | Result-mesh pixel size for coloring. |
| Color Map | CM | Color map: Viridis, Turbo, or Inferno. |
| Run | Run the prediction. Momentary — resets when the result arrives. |
Output
| Name | Nickname | Description |
|---|---|---|
| Wind Speed | U | Predicted pedestrian wind speeds. |
| Result Mesh | M | Colored wind-speed result mesh. |
