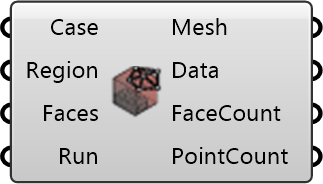

Create Mesh

Create Mesh

Create a visualization mesh from polyMesh point/face data. OutdoorPlus 0.0.20.0

Input

• Case

  UMCF case used to locate the mesh data.

• Region

  Region name to visualize.

• Faces

  Optional face indices to visualize.

• Run

  Generate the mesh when true.

Output

• Mesh

  Generated unified mesh.

• Data

  Geometric and topological mesh data.

• FaceCount

  Total face count in the polyMesh.

• PointCount

  Total point count in the polyMesh.
