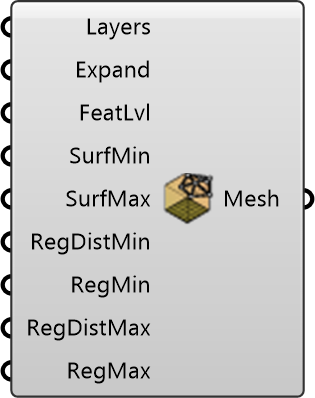

Terrain Mesh Settings

Terrain Mesh Settings

Configure mesh settings for terrain and underground regions. OutdoorPlus 0.0.20.0

Input

  • Layers
    Number of layers in the terrain extrusion. Optional; default is 4.
  • Expand
    Extrusion expansion ratio. Optional; default is 1.2.
  • FeatLvl
    Feature refinement level. Optional; default is 4.
  • SurfMin
    Minimum surface refinement level. Optional; default is 3.
  • SurfMax
    Maximum surface refinement level. Optional; default is 5.
  • RegDistMin
    Outer distance for the lower region refinement level. Optional; default is 2.0.
  • RegMin
    Lower region refinement level. Optional; default is 4.
  • RegDistMax
    Inner distance for the higher region refinement level. Optional; default is 1.0.
  • RegMax
    Upper region refinement level. Optional; default is 5.

Output

  • Mesh
    Mesh settings for terrain and underground regions.
