Simulation Mesh Settings

Simulation Mesh Settings

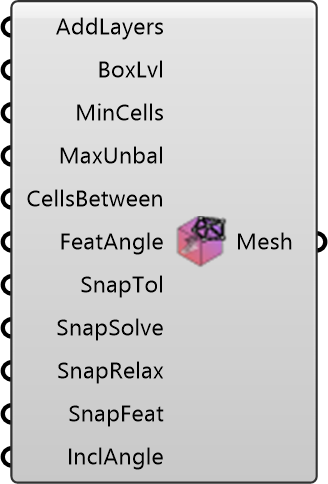

Configure snappyHexMesh settings for the simulation. OutdoorPlus 0.0.20.0

Input

  • AddLayers
    Enable prism layers. Optional; default is true.
  • BoxLvl
    Refinement level inside the refinement box. Optional; default is 2.
  • MinCells
    Minimum refinement of cells. Optional; default is 0.
  • MaxUnbal
    Maximum load unbalance. Optional; default is 0.10.
  • CellsBetween
    Number of cells between refinement levels. Optional; default is 2.
  • FeatAngle
    Feature angle for edge detection (deg). Optional; default is 10.
  • SnapTol
    Snap tolerance. Optional; default is 1.0.
  • SnapSolve
    Solver iterations for snapping. Optional; default is 80.
  • SnapRelax
    Relaxation iterations for snapping. Optional; default is 8.
  • SnapFeat
    Feature snap iterations. Optional; default is 20.
  • InclAngle
    Identify a feature when face angle < includedAngle (deg). Optional; default is 90.

Output

  • Mesh
    Simulation mesh settings for snappyHexMesh.
