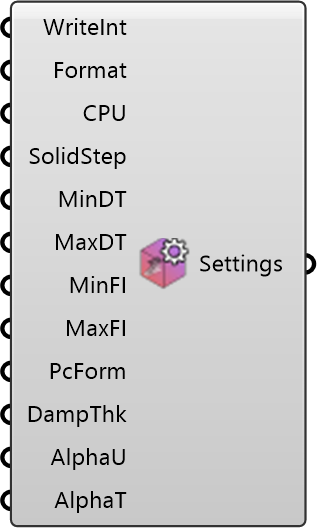

Simulation Settings

Simulation Settings

Configure simulation control settings for UMCF. OutdoorPlus 0.0.20.0

Input

  • WriteInt
    Write interval in time steps. Optional; uses solver default if omitted.
  • Format
    Write format: 0=ascii, 1=binary, 2=compressed.
  • CPU
    Number of CPUs/subdomains to use. Optional; default is 1.
  • SolidStep
    Initial solid time step factor for UMCF controlDict. Optional.
  • MinDT
    Minimum time step between iterations. Optional.
  • MaxDT
    Maximum time step between iterations. Optional.
  • MinFI
    Minimum fluid iterations per time step. Optional.
  • MaxFI
    Maximum fluid iterations per time step. Optional.
  • PcForm
    'pc-based' or 'mixed' (default is pc-based).
  • DampThk
    Blending coefficients: damping thickness. Optional.
  • AlphaU
    Blending coefficients: alphaCoeffU. Optional.
  • AlphaT
    Blending coefficients: alphaCoeffT. Optional.

Output

  • Settings
    Simulation control settings.
