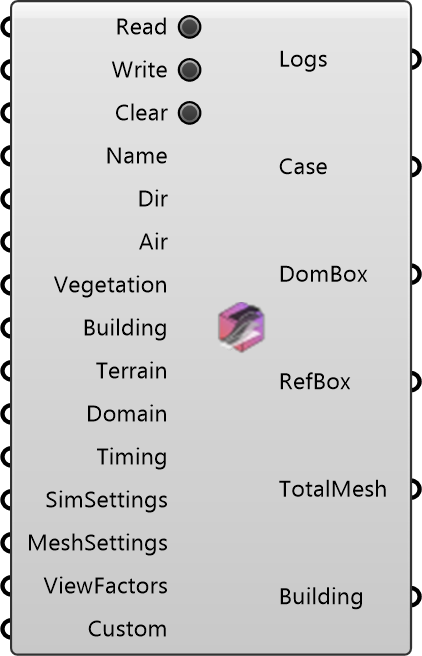

UMCF Case

UMCF Case

Create, read, and manage an OutdoorPlus (UMCF) case. OutdoorPlus 0.0.20.0

Input

• Read

  Read an existing case from the working directory.

• Write

  Write the case files to the working directory.

• Clear

  Delete all files for this case in the working directory.

• Name

  Case folder name (no spaces).

• Dir

  Folder for case files and results.

• Air

  Air region for this case.

• Vegetation

  Vegetation region for this case.

• Building

  Building (solid) region for this case.

• Terrain

  Terrain region for this simulation (optional).

• Domain

  Domain and refinement box parameters.

• Timing

  Case timing settings.

• SimSettings

  Simulation control settings.

• MeshSettings

  Simulation mesh settings.

• ViewFactors

  View factor settings.

• Custom

  Optional additional entries to merge into the case.

Output

• Logs

  Case modification logs.

• Case

  UMCF case instance.

• DomBox

  Resolved simulation domain box.

• RefBox

  Refinement box derived from the case.

• TotalMesh

  Total mesh for the case.

• Building

  Building mesh.
